本产品适用于交流额定电压U0/U为300/300V及以下的电器、仪表、电子设备和自动化装置内部安装布线。 执行标准：JB/T 8734.4-2016
获取最低报价
本产品适用于交流额定电压U0/U为300/300V及以下的电器、仪表、电子设备和自动化装置内部安装布线。 执行标准：JB/T 8734.4-2016
1、电缆长期使用温度为-15℃～70℃。 2、电缆敷设温度不低于0℃，特殊使用温度可定做。 3、导体：99.996%无氧软铜丝。 4、绝缘：70℃国标聚氯乙烯。 5、护套：70℃国标聚氯乙烯。

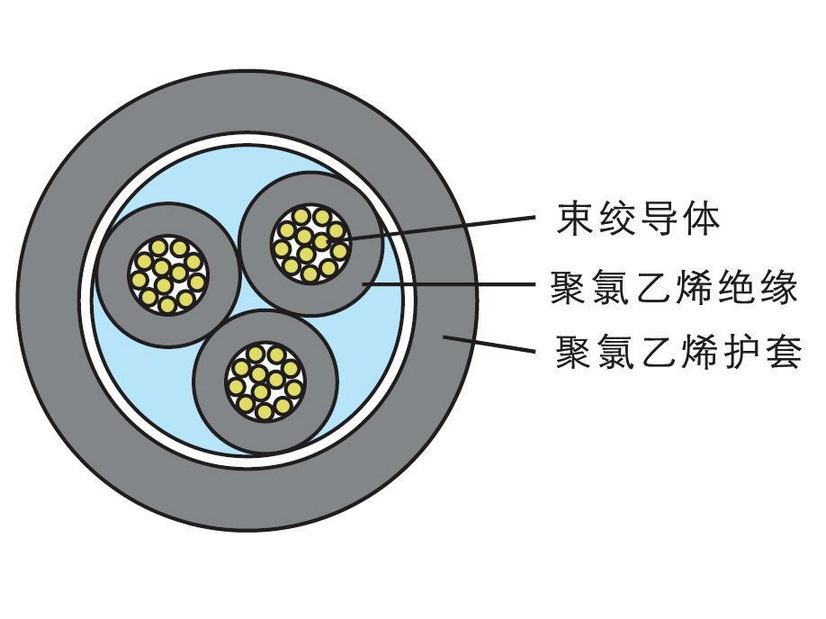

AVVR型300/300V铜芯聚氯乙烯绝缘聚氯乙烯护套安装用软电缆
执行标准：JB/T 8734.4-2016
芯数×标称截面 mm² | 导体中单线大直径 mm | 绝缘厚度规定值 mm | 护套厚度标称值 mm | 平均外径或 外形尺寸 | 20℃时导体电阻 大值 Ω/km | 70℃时绝缘电阻 小值 MΩ·km | ||
下限 | 上限 | 铜芯 | 镀锡铜芯 | |||||
2×0.08 | 0.13 | 0.4 | 0.6 | 3.1 2.3×3.4 | 4.1 2.7×4.1 | 247 | 254 | 0.019 |
2×0.12 | 0.16 | 0.4 | 0.6 | 3.3 2.4×3.6 | 4.3 2.8×4.3 | 158 | 163 | 0.016 |
2×0.2 | 0.16 | 0.4 | 0.6 | 3.6 2.5×3.9 | 4.7 3.0×4.7 | 92.3 | 95.0 | 0.013 |
2×0.3 | 0.16 | 0.5 | 0.6 | 4.1 2.8×4.4 | 5.3 3.4×5.3 | 69.2 | 71.2 | 0.014 |
2×0.4 | 0.16 | 0.5 | 0.6 | 4.4 2.9×4.7 | 5.7 3.5×5.7 | 48.2 | 49.6 | 0.012 |
3×0.12 | 0.16 | 0.4 | 0.6 | 3.4 | 4.5 | 158 | 163 | 0.016 |
3×0.2 | 0.16 | 0.4 | 0.6 | 3.8 | 4.9 | 92.3 | 95.0 | 0.013 |
3×0.3 | 0.16 | 0.5 | 0.6 | 4.4 | 5.7 | 69.2 | 71.2 | 0.014 |
3×0.4 | 0.16 | 0.5 | 0.6 | 4.7 | 6.0 | 48.2 | 49.6 | 0.012 |
4×0.12 | 0.16 | 0.4 | 0.6 | 3.8 | 4.9 | 158 | 163 | 0.016 |
4×0.2 | 0.16 | 0.4 | 0.6 | 4.2 | 5.4 | 92.3 | 95.0 | 0.013 |
4×0.3 | 0.16 | 0.5 | 0.6 | 4.8 | 6.2 | 69.2 | 71.2 | 0.014 |
4×0.4 | 0.16 | 0.5 | 0.6 | 5.1 | 6.6 | 48.2 | 49.6 | 0.012 |
5×0.12 | 0.16 | 0.4 | 0.6 | 4.1 | 5.3 | 158 | 163 | 0.016 |
5×0.2 | 0.16 | 0.4 | 0.6 | 4.5 | 5.8 | 92.3 | 95.0 | 0.013 |
5×0.3 | 0.16 | 0.5 | 0.6 | 5.3 | 6.7 | 69.2 | 71.2 | 0.014 |
5×0.4 | 0.16 | 0.5 | 0.6 | 5.6 | 7.2 | 48.2 | 49.6 | 0.012 |
6~7×0.12 | 0.16 | 0.4 | 0.6 | 4.4 | 5.7 | 158 | 163 | 0.016 |
6~7×0.2 | 0.16 | 0.4 | 0.6 | 4.9 | 6.3 | 92.3 | 95.0 | 0.013 |
6~7×0.3 | 0.16 | 0.5 | 0.6 | 5.7 | 7.3 | 69.2 | 71.2 | 0.014 |
6~7×0.4 | 0.16 | 0.5 | 0.6 | 6.2 | 7.8 | 48.2 | 49.6 | 0.012 |
10×0.12 | 0.16 | 0.4 | 0.6 | 5.7 | 7.2 | 158 | 163 | 0.016 |
10×0.2 | 0.16 | 0.4 | 0.6 | 6.3 | 8.0 | 92.3 | 95.0 | 0.013 |
10×0.3 | 0.16 | 0.5 | 0.8 | 7.8 | 9.7 | 69.2 | 71.2 | 0.014 |
10×0.4 | 0.16 | 0.5 | 0.8 | 8.3 | 10.4 | 48.2 | 49.6 | 0.012 |
12×0.12 | 0.16 | 0.4 | 0.6 | 5.8 | 7.4 | 158 | 163 | 0.016 |
12×0.2 | 0.16 | 0.4 | 0.6 | 6.5 | 8.2 | 92.3 | 95.0 | 0.013 |
12×0.3 | 0.16 | 0.5 | 0.8 | 8.0 | 10.1 | 69.2 | 71.2 | 0.014 |
12×0.4 | 0.16 | 0.5 | 0.8 | 8.6 | 10.8 | 48.2 | 49.6 | 0.012 |
14×0.12 | 0.16 | 0.4 | 0.6 | 6.1 | 7.8 | 158 | 163 | 0.016 |
14×0.2 | 0.16 | 0.4 | 0.8 | 7.2 | 9.1 | 92.3 | 95.0 | 0.013 |
14×0.3 | 0.16 | 0.5 | 0.8 | 8.4 | 10.6 | 69.2 | 71.2 | 0.014 |
14×0.4 | 0.16 | 0.5 | 0.8 | 9.1 | 11.3 | 48.2 | 49.6 | 0.012 |
16×0.12 | 0.16 | 0.4 | 0.6 | 6.5 | 8.2 | 158 | 163 | 0.016 |
16×0.2 | 0.16 | 0.4 | 0.8 | 7.6 | 9.6 | 92.3 | 95.0 | 0.013 |
16×0.3 | 0.16 | 0.5 | 0.8 | 8.9 | 11.1 | 69.2 | 71.2 | 0.014 |
16×0.4 | 0.16 | 0.5 | 0.8 | 9.6 | 11.9 | 48.2 | 49.6 | 0.012 |
19×0.12 | 0.16 | 0.4 | 0.8 | 7.2 | 9.1 | 158 | 163 | 0.016 |
19×0.2 | 0.16 | 0.4 | 0.8 | 8.1 | 10.1 | 92.3 | 95.0 | 0.013 |
19×0.3 | 0.16 | 0.5 | 0.8 | 9.4 | 11.7 | 69.2 | 71.2 | 0.014 |
19×0.4 | 0.16 | 0.5 | 0.8 | 10.1 | 12.6 | 48.2 | 49.6 | 0.012 |
24×0.12 | 0.16 | 0.4 | 0.8 | 8.4 | 10.6 | 158 | 163 | 0.016 |
24×0.2 | 0.16 | 0.4 | 0.8 | 9.4 | 11.7 | 92.3 | 95.0 | 0.013 |
24×0.3 | 0.16 | 0.5 | 1.0 | 11.4 | 14.2 | 69.2 | 71.2 | 0.014 |
24×0.4 | 0.16 | 0.5 | 1.0 | 12.3 | 15.2 | 48.2 | 49.6 | 0.012 |
