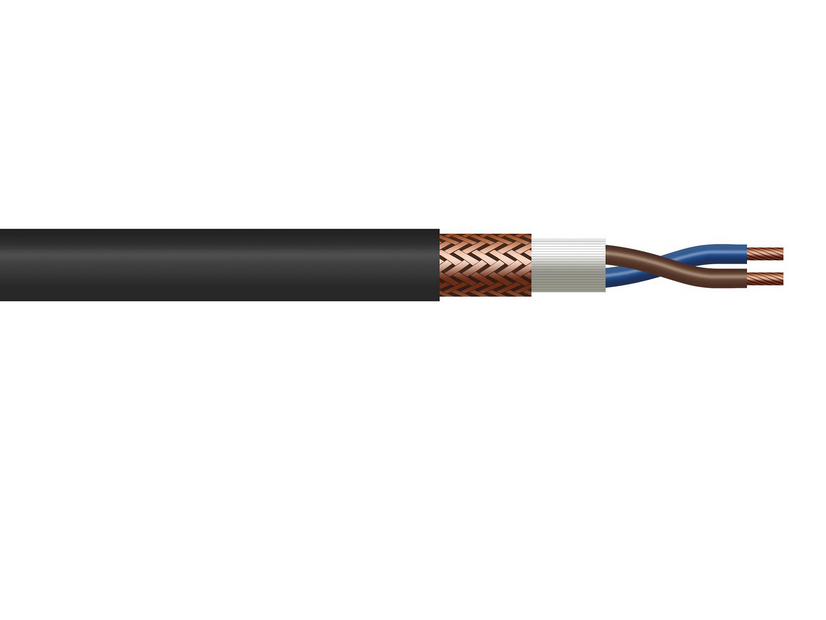

RVVP型铜芯屏蔽软电缆-上海普天立恒光电技术有限公司

产品亮点

产品概述
产品特点

本产品适用于交流额定电压U0/U为300/300V及以下电器、仪表、电子设备及自动化装置，作有屏蔽要求的布线连接。执行标准：JB/T 8734.5-2016、Q/321001LLD 03-2017

1、电缆长期使用温度为-15℃～70℃。 2、电缆敷设温度不低于0℃，特殊使用温度可定做。 3、导体：99.996%无氧软铜丝。 4、绝缘：70℃国标聚氯乙烯。 5、屏蔽层：99.996%无氧软铜丝编织，编织密度60%～80%。 6、护套：70℃国标聚氯乙烯。

产品参数

RVVP型300/300V铜芯聚氯乙烯绝缘屏蔽聚氯乙烯护套软电缆

执行标准：JB/T 8734.5-2016

芯数×标称面 mm²	绝缘厚度mm	护套厚度mm	平均外径或外形尺寸 mm		20℃时导体电阻大值 Ω/km		70℃时绝缘电阻小值 MΩ·km
芯数×标称面 mm²	绝缘厚度mm	护套厚度mm	下限	上限	铜芯	镀锡铜芯
1×0.08	0.4	0.4	2.4	2.9	247	254	0.019
1×0.12	0.4	0.4	2.4	3.0	158	163	0.016
1×0.2	0.4	0.4	2.6	3.2	92.3	95.0	0.013
1×0.3	0.5	0.4	2.9	3.5	69.2	71.2	0.014
1×0.4	0.5	0.4	3.0	3.7	48.2	49.6	0.012
1×0.5	0.5	0.4	3.1	3.8	39.0	40.1	0.012
1×0.75	0.5	0.4	3.4	4.1	26.0	26.7	0.010
1×1.0	0.6	0.6	4.1	4.9	19.5	20.0	0.011
1×1.5	0.6	0.6	4.3	5.2	13.3	13.7	0.0094
1×2.5	0.7	0.6	4.9	6.0	7.98	8.21	0.0086
2×0.08	0.4	0.4	3.2 2.4×3.5	4.2 2.9×4.2	247	254	0.019
2×0.12	0.4	0.6	3.7 2.8×4.0	4.9 3.4×4.9	158	163	0.016
2×0.2	0.4	0.6	4.1 3.0×4.4	5.3 3.6×5.3	92.3	95.0	0.013
2×0.3	0.5	0.6	4.8 3.5×5.1	6.2 4.2×6.2	69.2	71.2	0.014
2×0.4	0.5	0.6	5.1 3.6×5.4	6.6 4.4×6.6	48.2	49.6	0.012
2×0.5	0.5	0.6	5.3 3.7×5.6	6.8 4.5×6.8	39.0	40.1	0.012
2×0.75	0.5	0.6	5.8 4.0×6.1	7.4 4.8×7.4	26.0	26.7	0.010
2×1.0	0.6	0.6	6.4 4.3×6.7	8.2 5.2×8.3	19.5	20.2	0.011
2×1.5	0.6	0.8	7.3 4.9×7.6	9.2 6.0×9.3	13.3	13.7	0.0094
2×2.5	0.7	1.0	8.8	11.7	7.98	8.21	0.0086
2×4.0	0.8	1.2	10.6	13.9	4.95	5.09	0.0079
3×0.12	0.4	0.6	3.9	5.1	158	163	0.016
3×0.2	0.4	0.6	4.5	5.8	92.3	95.0	0.013
3×0.3	0.5	0.6	5.1	6.5	69.2	71.2	0.014
3×0.4	0.5	0.6	5.4	6.9	48.2	49.6	0.012
3×0.5	0.5	0.6	5.6	7.1	39.0	40.1	0.012
3×0.75	0.5	0.6	6.1	7.8	26.0	26.7	0.010
3×1.0	0.6	0.8	7.2	9.1	19.5	20.0	0.011
3×1.5	0.6	0.8	8.0	10.0	13.3	13.7	0.0094
3×2.5	0.7	1.0	9.5	12.6	7.98	8.21	0.0086
4×0.12	0.4	0.6	4.5	5.8	158	163	0.016
4×0.2	0.4	0.6	4.9	6.2	92.3	95.0	0.013
4×0.3	0.5	0.6	5.5	7.0	69.2	71.2	0.014
4×0.4	0.5	0.6	5.9	7.5	48.2	49.6	0.012
4×0.5	0.5	0.8	6.5	8.9	39.0	40.1	0.012
4×0.75	0.6	0.8	6.8	9.3	26.0	26.7	0.010
4×1.0	0.6	0.9	7.7	9.7	19.5	20.0	0.011
4×1.5	0.6	0.9	8.4	11.5	13.3	13.7	0.0094
4×2.5	0.7	1.0	10.1	13.6	7.98	8.21	0.0086
5×0.12	0.4	0.6	4.8	6.2	158	163	0.016
5×0.2	0.4	0.6	5.3	6.7	92.3	95.0	0.013
5×0.3	0.5	0.6	6.0	7.6	69.2	71.2	0.014
5×0.4	0.5	0.6	6.4	8.1	48.2	49.6	0.012
5×0.5	0.5	0.8	7.0	9.5	39.0	40.1	0.012
5×0.75	0.5	0.8	7.4	10.0	26.0	26.7	0.010
5×1.0	0.6	0.9	8.5	11.3	19.5	20.0	0.011
5×1.5	0.6	1.0	9.6	12.6	13.3	13.7	0.0094
5×2.5	0.7	1.1	11.5	14.9	7.98	8.21	0.0086
6~7×0.12	0.4	0.6	5.2	6.6	158	163	0.016
6~7×0.2	0.4	0.6	5.7	7.2	92.3	95.0	0.013
6~7×0.3	0.5	0.6	6.5	8.2	69.2	71.2	0.014
6~7×0.4	0.5	0.8	7.3	9.2	48.2	49.6	0.012
6~7×0.5	0.5	0.8	7.6	10.2	39.0	40.1	0.012
6~7×0.75	0.5	0.8	8.0	10.7	26.0	26.7	0.010
6~7×1.0	0.6	1.0	9.4	12.4	19.5	20.0	0.011
6~7×1.5	0.6	1.0	10.4	13.6	13.3	13.7	0.0094
6~7×2.5	0.7	1.1	12.4	16.1	7.98	8.21	0.0086
8×0.12	0.4	0.6	5.7	7.3	158	163	0.016
8×0.2	0.4	0.6	6.3	7.9	92.3	95.0	0.013
8×0.3	0.5	0.6	7.2	9.1	69.2	71.2	0.014
8×0.4	0.5	0.8	8.1	10.1	48.2	49.6	0.012
8×0.5	0.5	0.8	8.4	11.2	39.0	40.1	0.012
8×0.75	0.5	0.8	8.9	11.8	26.0	26.7	0.010
8×1.0	0.6	1.0	10.5	13.7	19.5	20.0	0.011
8×1.5	0.6	1.0	11.5	15.0	13.3	13.7	0.0094
8×2.5	0.7	1.2	14.1	18	7.98	8.21	0.0086
9×0.12	0.4	0.6	6.1	7.8	158	163	0.016
9×0.2	0.4	0.8	7.1	9.0	92.3	95.0	0.013
9×0.3	0.5	0.8	8.2	10.2	69.2	71.2	0.014
9×0.4	0.5	0.8	8.7	10.9	48.2	49.6	0.012
9×0.5	0.5	0.8	9.1	12.0	39.0	40.1	0.012
9×0.75	0.5	0.8	9.6	12.7	26.0	26.7	0.010
9×1.0	0.6	1.0	11.5	15.0	19.5	20.0	0.011
9×1.5	0.6	1.0	12.4	16.1	13.3	13.7	0.0094
9×2.5	0.7	1.2	15.2	19.4	7.98	8.21	0.0086
10×0.12	0.4	0.6	6.4	8.1	158	163	0.016
10×0.2	0.4	0.8	7.4	9.3	92.3	95.0	0.013
10×0.3	0.5	0.8	8.7	10.9	69.2	71.2	0.014
10×0.4	0.5	0.8	9.3	11.6	48.2	49.6	0.012
10×0.5	0.5	0.9	9.9	13.0	39.0	40.1	0.012
10×0.75	0.5	1.0	10.6	13.9	26.0	26.7	0.010
10×1.0	0.6	1.0	12	15.5	19.5	20.0	0.011
10×1.5	0.6	1.1	13.1	16.9	13.3	13.7	0.0094
10×2.5	0.7	1.2	15.8	20.2	7.98	8.21	0.0086
12×0.12	0.4	0.6	6.6	8.3	158	163	0.016
12×0.2	0.4	0.8	7.6	9.6	92.3	95.0	0.013
12×0.3	0.5	0.8	9.0	11.2	69.2	71.2	0.014
12×0.4	0.5	0.8	9.6	11.9	48.2	49.6	0.012
12×0.5	0.5	0.9	10.2	13.4	39.0	40.1	0.012
12×0.75	0.5	1.0	11.0	14.3	26.0	26.7	0.010
12×1.0	0.6	1.0	12.4	16.0	19.5	20.0	0.011
12×1.5	0.6	1.2	13.7	17.7	13.3	13.7	0.0094
12×2.5	0.7	1.4	16.7	21.3	7.98	8.21	0.0086
14×0.12	0.4	0.8	7.2	9.1	158	163	0.016
14×0.2	0.4	0.8	8.2	10.3	92.3	95.0	0.013
14×0.3	0.5	0.8	9.4	11.7	69.2	71.2	0.014
14×0.4	0.5	0.8	10.0	12.5	48.2	49.6	0.012
16×0.12	0.4	0.8	7.6	9.5	158	163	0.016
16×0.2	0.4	0.8	8.6	10.8	92.3	95.0	0.013
16×0.3	0.5	0.8	9.9	12.3	69.2	71.2	0.014
16×0.4	0.5	0.8	10.5	13.1	48.2	49.6	0.012
16×0.5	0.5	1.0	11.4	14.8	39.0	40.1	0.012
16×0.75	0.5	1.2	12.4	16.1	26.0	26.7	0.010
16×1.0	0.6	1.2	14.0	18.0	19.5	20.0	0.011
16×1.5	0.6	1.2	15.1	19.4	13.3	13.7	0.0094
16×2.5	0.7	1.4	18.5	23.4	7.98	8.21	0.0086
19×0.12	0.4	0.8	8.2	10.3	158	163	0.016
19×0.2	0.4	0.8	9.0	11.3	92.3	95.0	0.013
19×0.3	0.5	0.8	10.4	12.9	69.2	71.2	0.014
19×0.4	0.5	1.0	11.5	14.2	48.2	49.6	0.012
20×0.12	0.4	0.8	8.6	10.7	158	163	0.016
20×0.2	0.4	0.8	9.5	11.8	92.3	95.0	0.013
20×0.3	0.5	0.8	10.9	13.5	69.2	71.2	0.014
20×0.4	0.5	1.0	12.0	14.9	48.2	49.6	0.012
20×0.5	0.5	1.0	12.6	16.2	39.0	40.1	0.012
24×0.12	0.4	0.8	9.4	11.7	158	163	0.016
24×0.2	0.4	0.8	10.4	12.9	92.3	95.0	0.013
24×0.3	0.5	1.0	12.4	14.4	69.2	71.2	0.014
24×0.4	0.5	1.0	13.2	16.4	48.2	49.6	0.012
24×0.12	0.4	0.8	9.4	11.7	158	163	0.016
26×0.2	0.4	0.8	10.4	12.9	92.3	95.0	0.013
26×0.3	0.5	1.0	12.4	15.2	69.2	71.2	0.014
26×0.4	0.5	1.0	13.2	16.4	48.2	49.6	0.012
26×0.5	0.5	1.2	14.2	17.5	39.0	40.1	0.012

执行标准：Q/321001LLD 03-2017

芯数×标称面 mm²	绝缘厚度mm	护套厚度mm	平均外径或外形尺寸 mm		20℃时导体电阻大值 Ω/km		70℃时绝缘电阻小值 MΩ·km
芯数×标称面 mm²	绝缘厚度mm	护套厚度mm	下限	上限	铜芯	镀锡铜芯
2×2.0	0.7	0.8	8.0	9.0	10.3	10.6	0.009
3×2.0	0.7	0.8	8.3	9.4	10.3	10.6	0.009
4×2.0	0.7	0.8	9.1	11.3	10.3	10.6	0.009
5×2.0	0.7	0.8	10.0	12.9	10.3	10.6	0.009
6×2.0	0.7	1.0	11.4	12.4	10.3	10.6	0.009
7×2.0	0.7	1.0	11.4	12.4	10.3	10.6	0.009
8×2.0	0.7	1.2	12.7	13.8	10.3	10.6	0.009
9×2.0	0.7	1.2	14.0	15.1	10.3	10.6	0.009
10×2.0	0.7	1.2	14.9	16.0	10.3	10.6	0.009
11×0.5	0.5	0.8	9.3	10.4	39.0	40.1	0.0012
11×0.75	0.5	1.0	10.7	11.8	26.0	26.7	0.010
11×1.0	0.6	1.0	12.1	13.2	19.5	20.0	0.010
11×1.5	0.6	1.0	14.0	15.1	13.3	13.7	0.009
11×2.0	0.7	1.2	15.4	16.5	10.3	10.6	0.009
11×2.5	0.8	1.2	17.3	18.4	7.98	8.21	0.009
12×2.0	0.7	1.2	15.4	16.5	10.3	10.6	0.009
